CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU

Product #: SYNX5028912
$638.95
Ships Free - This items ships free with your order
Delivered by Fri 12/19 Mon 12/22 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU
8 Outlets, 12 ft, NEMA L5-20P (5-20P Adapter), Horizontal, 1U, SNMP, LCD, 3YR Warranty

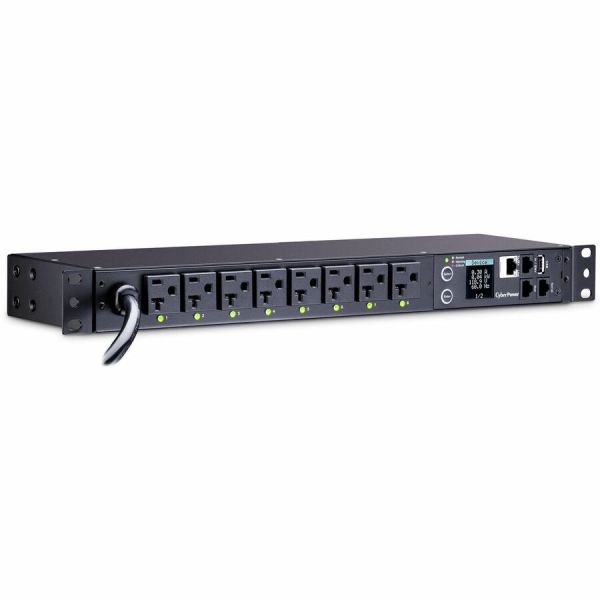

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

More from the Manufacturer
  • Automated notifications:
  • Email, SMS Text, and SNMP Trap
  • Phase:
  • Single
  • Amps:
  • 20A (Derated to 16A)
  • Volts:
  • 100 - 120 V
  • Frequency:
  • 50Hz/60Hz
  • Plug type:
  • NEMA (L)5-20P
  • Outlets:
  • 8 NEMA 5-20R
  • Size:
  • 1U Rackmount
  • Warranty:
  • 3 year
  • With PDUs decisions for load balancing and minimizing extra cost can be managed
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
  • Single Phase phase PDU for reliable performance with maximum productivity
  • NEMA L5-20P plug/connector type for better, dependable connectivity and desired power output
  • 120 V AC input voltage for optimal performance with maximum usability
  • 100 V AC output voltage for better reliance and maximum usability
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information

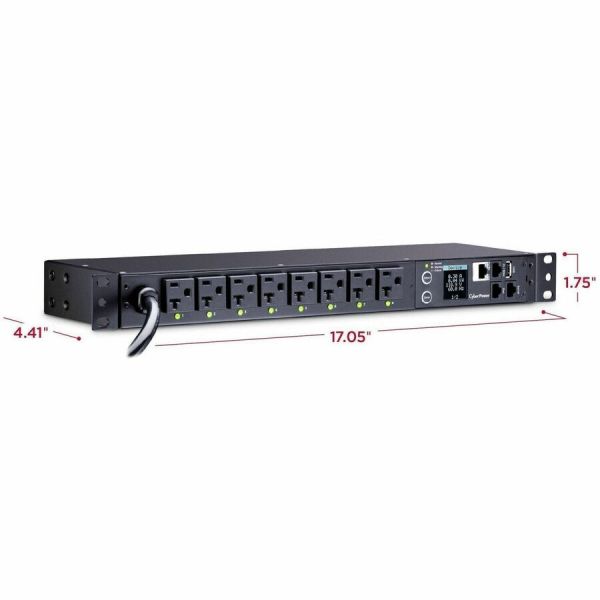

    Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 3.31 Weight (lb) : 7.3 Shipping Dimensions - (WxHxD) (cm) : 49.53 x 6.68 x 25.1 (cm) Shipping - Dimensions (WxHxD, in) : 19.5 x 2.63 x 9.88 (in) Shipping - Dimensions (WxHxD, mm) : 495.3 x 66.8 x 250.95 (mm) Shipping - Weight (kg) : 4.17 Shipping - Weight (lb) : 9.2 Cord Length : 12 ft (3.7 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Phase : Single Phase Plug Style : Straight Meter Readout : Power Control Display Nominal Output Voltage : 100 - 120 VAC Outlets - Front : 8 Outlets - # of Banks : 1 Outlets - Rear : 0 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-20R Overload Protection : None Overload Protection (Each Bank) : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD LED Indicators : Tx/Rx Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Adjustable Mounting Brackets : 1 set Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 1U Style : Horizontal Rackmount Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Environmental : RoHS Compliant Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1A Product Warranty : 3 Year Limited Warranty
  • Application/Usage
    Network Device Server
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL62368 FCC Class A ICES-003: Issue 7
  • Circuit Breaker
    Yes
  • Cord Length
    12 ft
  • Country of Origin
    China
  • Depth
    4.4"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    LCD Display LED Status Indicator
  • Form Factor
    Rack
  • Height
    1.8"
  • Input Current
    20 A
  • Input Frequency
    60 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    100 V AC - 120 V AC
  • Limited Warranty
    3 Year
  • Management
    IPv4 UDP SNMPv1 HTTP NTP Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog Protocols: TCP IP DNS CLI Windows AD SNMP
  • Manufacturer Part Number
    PDU41002
  • Maximum Operating Temperature
    140°F (60°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Mount Type
    Rack-mountable Wall-mountable
  • Network (RJ-45)
    Yes
  • Output Voltage
    120 V AC 100 V AC
  • Output Voltage Range
    100 V AC - 120 V AC
  • Package Contents
    PDU41002 Adaptor
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA L5-20P
  • Product Model
    PDU41002
  • Product Name
    PDU41002
  • Product Series
    Switched PDU
  • Product Type
    PDU
  • Rack Height
    1U
  • Receptacle Type
    NEMA 5-20R
  • Width
    17.1"
