CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Provides immediate updates about power events via email, SMS text, or SNMP traps
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

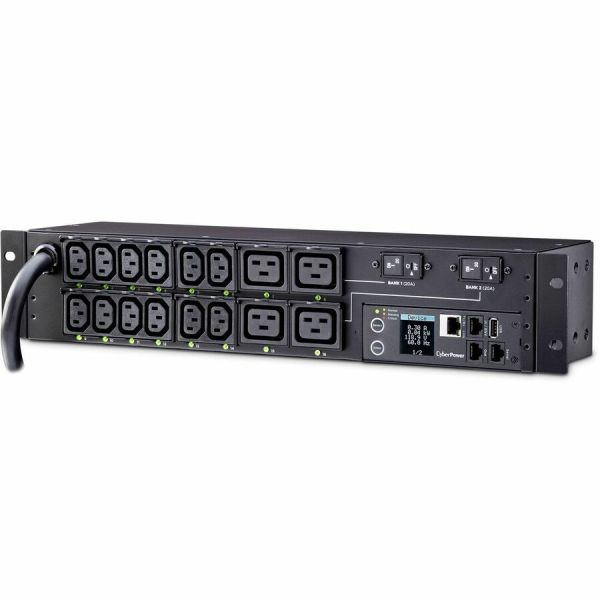

CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU - The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41008 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Provides immediate updates about power events via email, SMS text, or SNMP traps
- Includes 3-year limited warranty
- Provide circuit protection and easy configuration for trouble-free access
- With switched PDU, remotely monitor, connect or disconnect data center loads
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
- 230 V AC output voltage for maximum dependability and added productivity
Product Specifications
-
Brand NameCyberPower
-
Country of OriginChina
-
Environmentally FriendlyYes
-
Height3.5"
-
Input Current30 A
-
Input Voltage230 V AC
-
Input Voltage Range200 V AC - 240 V AC
-
Length4.4"
-
Limited Warranty3 Year
-
ManagementProtocols: IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
-
Manufacturer Part NumberPDU41008
-
Mount TypeRack-mountable
-
Mounting OrientationHorizontal/Vertical
-
Network (RJ-45)Yes
-
Output Voltage230 V AC
-
Output Voltage Range200 V AC - 240 V AC
-
Package ContentsPDU41008 16 Outlet PDU 2 x Mounting Brackets 12 x M4x8 Bracket Mounting Screws 6 x M5x12 Rack Mounting Screws and Washers 2 x Cord Retention Trays 12 x M3x6 Cord Retention Tray Screws 24 x Cable Ties RJ45/DB9 Serial Port Connection Cable User Manual Registration Card Download Card
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L6-30P
-
Product ModelPDU41008
-
Product NamePDU41008 16 Outlet PDU
-
Product SeriesSwitched PDU
-
Product TypePDU
-
Rack Height2U
-
Receptacle Detail12 x IEC 60320 C13 4 x IEC 60320 C19
-
Receptacle TypeIEC 60320 C13 IEC 60320 C19
-
Remote Outlet SwitchingYes
-
Width17.1"
