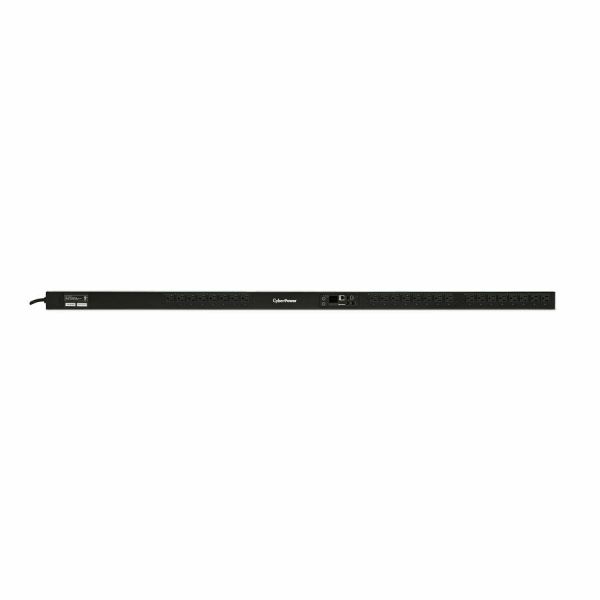

CyberPower PDU41101 100 - 120 VAC 20A Switched PDU

Product Specifications

• Additional Information
  Physical Dimensions - (WxHxD) (cm) : 4.78 x 166.62 x 4.78 (cm) Physical Dimensions - (WxHxD) (in) : 1.88 x 65.6 x 1.88 (in) Physical Dimensions - (WxHxD) (mm) : 48 x 1666 x 48 (mm) Weight (kg) : 7.0 Weight (lb) : 15.43 Shipping Dimensions - (WxHxD) (cm) : 189.23 x 11.43 x 17.78 (cm) Shipping - Dimensions (WxHxD, in) : 74.5 x 4.5 x 7 (in) Shipping - Dimensions (WxHxD, mm) : 1892.3 x 114.3 x 177.8 (mm) Shipping - Weight (kg) : 8.89 Shipping - Weight (lb) : 19.6 Cord Length : 10 ft (3.0 m) Derated Input Current : 16 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-20P (5-20P Adapter) Maximum Input Current : 20A Nominal Input Voltage : 100 - 120 VAC Power Cord Length : 10 ft (3 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 24 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : None USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : Horizontal or Vertical Wallmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
• Application/Usage
  Data Center Network Device
• Brand Name
  CyberPower
• Certifications & Standards
  UL62368 FCC Class A ICES-003: Issue 7
• Cord Length
  10 ft
• Country of Origin
  China
• Depth
  1.9"
• Environmental Compliance
  Restriction of Hazardous Substances (RoHS)
• Environmentally Friendly
  Yes
• Features
  LCD Display
• Form Factor
  Rack
• Height
  2.2"
• Input Current
  20 A
• Input Frequency
  60 Hz
• Input Voltage
  120 V AC
• Input Voltage Range
  100 V AC - 120 V AC
• Length
  66.6"
• Limited Warranty
  3 Year
• Management
  Protocols: IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog Windows AD
• Manufacturer Part Number
  PDU41101
• Maximum Operating Temperature
  140°F (60°C)
• Minimum Operating Temperature
  32°F (0°C)
• Mount Type
  Rack-mountable Wall-mountable
• Network (RJ-45)
  Yes
• Output Voltage
  120 V AC
• Output Voltage Range
  100 V AC - 120 V AC
• Phase
  Single Phase
• Plug/Connector Type
  NEMA L5-20P
• Product Model
  PDU41101
• Product Name
  PDU41101
• Product Series
  Switched PDU
• Product Type
  PDU
• Rack Height
  0U
• Receptacle Detail
  24 x NEMA 5-20R
• Receptacle Type
  NEMA 5-20R
• Width
  1.9"
