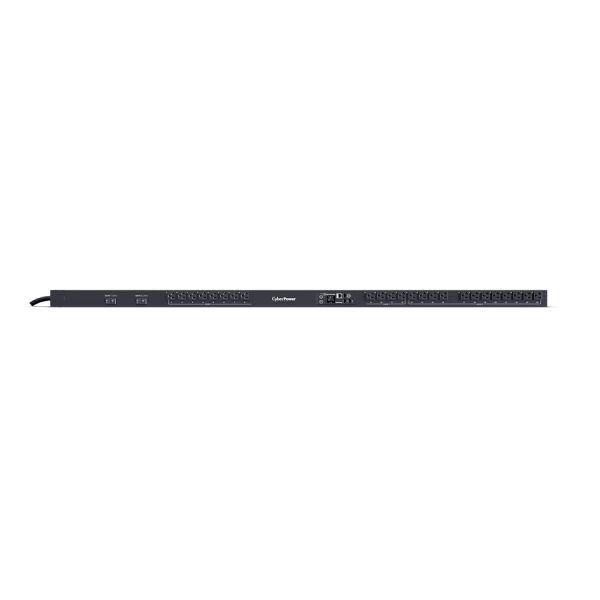

CyberPower PDU41102 Single Phase 100 - 120 VAC 30A Switched PDU
Product #:
SYNX6443267
+3View All
$1,138.47
Loading...
Product Description
CyberPower PDU41102 Single Phase 100 - 120 VAC 30A Switched PDU
24 Outlets, 10 ft, NEMA L5-30P, Vertical, 0U, SNMP, LCD, 3YR Warranty
The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 30A (Derated to 24A)
- Volts: 100 - 120 V
- Frequency: 50Hz/60Hz
- Plug type: NEMA L5-30P
- Outlets: 24 NEMA 5-20R
- Size: 0U Rackmount
- Warranty: 3 year
- With a built-in digital current meter avoid potential overloads via switched PDUs
- NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
- Modular design for better usability and increased efficiency
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA L5-30P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC output voltage for optimal performance with maximum feasibility
Loading...
Product Specifications
-
Additional InformationShipping Dimensions - (WxHxD) (cm): 18.49 x 189.51 x 11.51 (cm) Shipping - Dimensions (WxHxD, in): 7.28 x 74.61 x 4.53 (in) Shipping - Dimensions (WxHxD, mm): 184.91 x 1895.09 x 115.06 (mm) Shipping - Weight (kg): 9.7 Shipping - Weight (lb): 21.38 LCD: Multifunction LCD LED Indicators: Tx/Rx Input Frequency Range: 50 Hz - 60 Hz Upgradeable firmware: Yes Operating Elevation: 0 - 11480 ft (0 - 3499 m) Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature: 32 - 140 °F (0 - 60 °C) Storage Elevation: 0 - 50000 ft (0 - 15239 m) Storage Temperature: 5 - 113 °F (-15 - 45 °C)
-
Brand NameCyberPower
-
Certifications & StandardsUL 60950-1 FCC Class A
-
Cord Length10 ft
-
Country of OriginPhilippines
-
Depth1.9"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmental SensorsTemperature/Humidity
-
Environmentally FriendlyYes
-
Height65.5"
-
Input Current30 A
-
Limited Warranty3 Year
-
Locking ReceptaclesCord Retention Tray
-
ManagementIPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
-
Manufacturer Part NumberPDU41102
-
Mount TypeRack-mountable
-
Mounting OrientationVertical
-
Network (RJ-45)Yes
-
Output Voltage120 V AC
-
Output Voltage Range100 V AC - 120 V AC
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA L5-30P
-
Product ColorBlack
-
Product Name24-Outlets PDU
-
Product SeriesSwitched PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
Rack Height0U
-
Receptacle Detail24 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R
-
Remote Outlet SwitchingYes
-
Width2.2"
