CyberPower PDU44003 Single Phase 100 - 120 VAC 30A Switched ATS PDU

Product #: ETLZ1075598486
$1,046.36
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

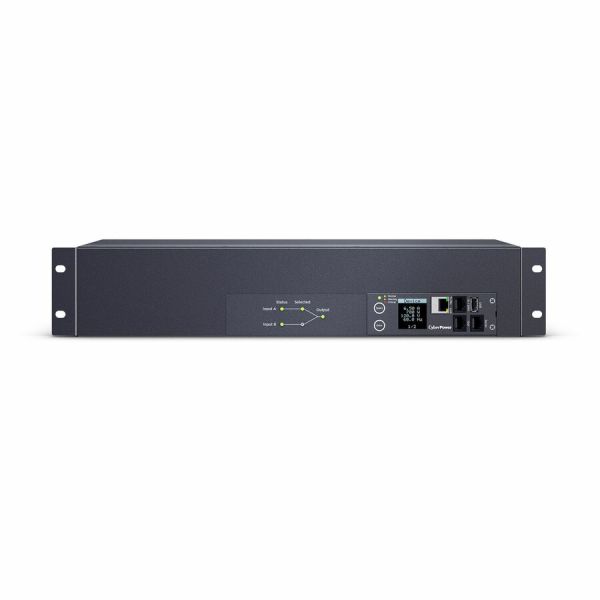

CyberPower PDU44003 Single Phase 100 - 120 VAC 30A Switched ATS PDU
17 Outlets, 10 ft, 2 x NEMA L5-30P, Horizontal, 2U, SNMP, LCD, 3YR Warranty
Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty.
  • Automated notifications:
  • Email, SMS Text, and SNMP Trap
  • Phase:
  • Single
  • Amps:
  • 30A (Derated to 24A)
  • Volts:
  • 100-120V
  • Frequency:
  • 50/60Hz
  • Plug type:
  • 2 x NEMA L5-30P
  • Outlets:
  • 16 x NEMA 5-20R, 1 x NEMA L5-30R
  • Size:
  • 2U Rackmount
  • Warranty:
  • 3 year
  • Provide circuit protection and easy configuration for trouble-free access
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU for reliable performance with maximum productivity
  • NEMA L5-30P plug/connector type for efficient connectivity and feasible power output
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 100 V AC output voltage for better reliance and maximum usability
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Physical Dimensions - (WxHxD) (cm) : 43.31 x 8.89 x 21.46 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 3.5 x 8.45 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 89 x 215 (mm) Weight (kg) : 7.98 Weight (lb) : 17.6 Shipping Dimensions - (WxHxD) (cm) : 54.61 x 17.78 x 40.32 (cm) Shipping - Dimensions (WxHxD, in) : 21.5 x 7 x 15.875 (in) Shipping - Dimensions (WxHxD, mm) : 546.1 x 177.8 x 403.23 (mm) Shipping - Weight (kg) : 9.34 Shipping - Weight (lb) : 20.6 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : 2 x NEMA L5-30P Maximum Input Current : 30A Nominal Input Voltage : 100 - 120 VAC Phase : Single Phase Plug Style : Straight Nominal Output Voltage : 100 - 120 VAC Outlet Banks : 2 Outlets - Total : 17 Outlet Type COMPUTED : 16 - NEMA 5-20R Overload Protection : 20A x 2 Power Source Transfer Time : 2-7 ms Source Failure Detection Time : 2-3 ms Total Transfer Time : Environmental Sensor : Optional, via RJ45 Hardware Connection Port : Ethernet (RJ45) LCD : Multifunction LCD LED Indicators : Source Status Modular Expandability (Cascading) : Yes, via RJ45 Outlet switching : Yes SNMP / HTTP Remote Monitoring : IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD Upgradeable firmware : Yes Color : Black Cord Retention Tray/Cord Organizers : Yes External Site Ground Pin : Yes Form Factors Supported : 2U Rackmount Material of Construction : Metal Rack Height : 2U Style : Rackmount Operating Elevation : 0 - 13123 ft (0 - 4000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 113 °F (0 - 45 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 131 °F (-15 - 55 °C) Environmental : RoHS Compliant Safety : UL62368 via cTUVus Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
  • Application/Usage
    Data Center Network Closet
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL62368 via cTUVus FCC Class A ICES-003: Issue 7
  • Circuit Breaker
    Yes
  • Cord Length
    10 ft
  • Country of Origin
    China
  • Depth
    8.4"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    LED Status Indicator LCD Display
  • Form Factor
    Rack
  • Height
    3.5"
  • Input Current
    30 A
  • Input Frequency
    60 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    100 V AC - 120 V AC
  • Limited Warranty
    3 Year
  • Management
    IPv4 UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Protocols: TCP IP Windows AD SNMP
  • Manufacturer Part Number
    PDU44003
  • Maximum Operating Temperature
    113°F (45°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Mount Type
    Rack-mountable
  • Mounting Orientation
    Horizontal
  • Network (RJ-45)
    Yes
  • Output Voltage
    120 V AC 100 V AC
  • Output Voltage Range
    100 V AC - 120 V AC
  • Phase
    Single Phase
  • Plug/Connector Detail
    2 x NEMA L5-30P
  • Plug/Connector Type
    NEMA L5-30P
  • Product Color
    Black
  • Product Model
    PDU44003
  • Product Name
    PDU44003
  • Product Series
    Switched ATS PDU
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • Rack Height
    2U
  • Receptacle Detail
    1 x NEMA L5-30R 16 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-20R NEMA L5-30R
  • Width
    17.1"
