CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU

Product #: SYNX4789459
$784.68
Ships Free - This items ships free with your order
Delivered by Fri 12/19 Mon 12/22 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

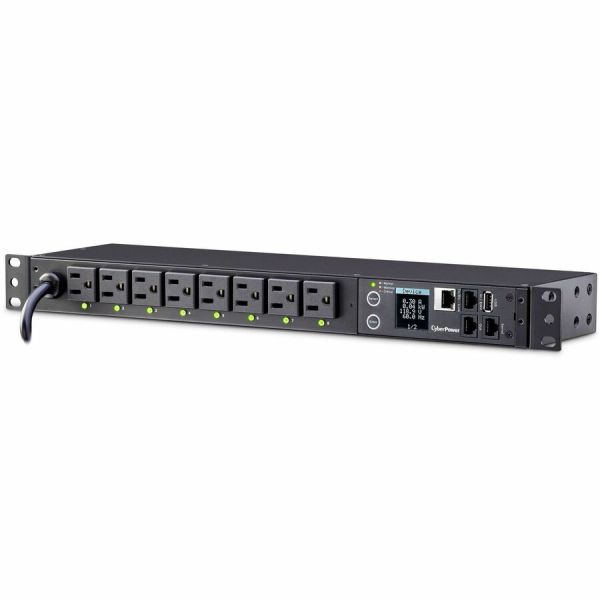

CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU
8 Outlets, 12 ft, NEMA 5-15P, Horizontal, 1U, LCD, 3YR Warranty
Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
  • Monitoring Level:
  • Metered-by-Outlet
  • Notifications:
  • Email, SMS Text
  • Phase:
  • Single
  • Amps:
  • 15A (Derated to 12A)
  • Volts:
  • 100-120 V
  • Frequency:
  • 50Hz/60Hz
  • Input plug type:
  • NEMA 5-15P
  • Outlets:
  • 8 NEMA 5-15R
  • Size:
  • 1U Rackmount
  • Cord length (ft.):
  • 12
  • Dimensions (in):

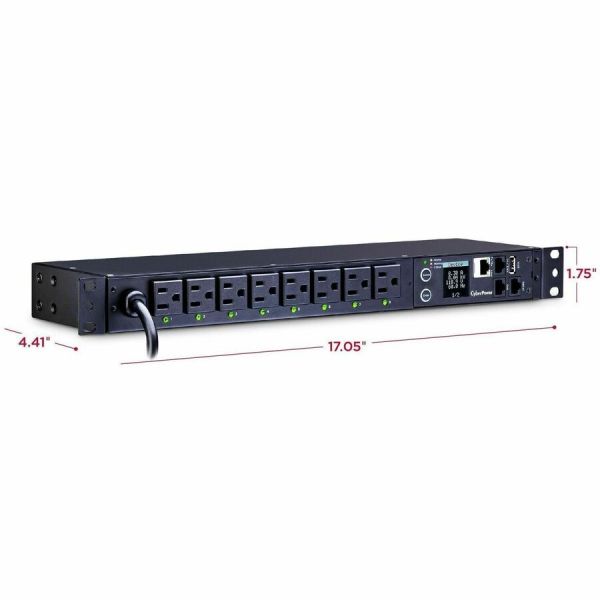

  • 17.05W x 1.75H x 4.41D
  • Warranty:
  • 3 year
  • PDU is reliable for power protection and management solutions
  • Manage the load and monitor it perfectly with Switched with Metered-by-Outlet anytime with the convenience
  • NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
  • Single Phase phase PDU for reliable performance with maximum productivity
  • NEMA 5-15P plug/connector type for better, dependable connectivity and desired power output
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 100 V AC output voltage for maximum dependability and added productivity
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm) Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in) Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm) Weight (kg) : 2.6 Weight (lb) : 5.73 Shipping Dimensions - (WxHxD) (cm) : 25.43 x 6.91 x 49.86 (cm) Shipping - Dimensions (WxHxD, in) : 10.01 x 2.72 x 19.63 (in) Shipping - Dimensions (WxHxD, mm) : 254.25 x 69.09 x 498.6 (mm) Shipping - Weight (kg) : 9.3 Shipping - Weight (lb) : 20.5 Cord Length : 12 ft (3.7 m) Derated Input Current : 12 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Nominal Input Voltage : 100 - 120 VAC Power Cord Length : 12 ft (4 m) Circuit Quantity : 1 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Overload Protection : None USB Charge Port : No Watts : 1800 W Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
  • Application/Usage
    Data Center Network Closet
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL62368 FCC Class A ICES-003: Issue 7
  • Circuit Breaker
    Yes
  • Cord Length
    12 ft
  • Country of Origin
    China
  • Depth
    4.4"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    LCD Display LED Status Indicator
  • Form Factor
    Rack
  • Height
    1.8"
  • Input Current
    15 A
  • Input Frequency
    60 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    100 V AC - 120 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (Watt)
    1800 W
  • Management
    SNMP Protocols: IPv4 TCP IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
  • Manufacturer Part Number
    PDU81001
  • Maximum Operating Temperature
    140°F (60°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Mount Type
    Rack-mountable
  • Network (RJ-45)
    Yes
  • Output Voltage
    100 V AC 120 V AC
  • Output Voltage Range
    100 V AC - 120 V AC
  • Package Contents
    2 x Short Mounting Brackets 2 x Long Mounting Brackets 12 x M4x8 Screws 6 x M5X12 Screws/Washers Cord Retention Tray 6 x M3x6 Screws 12 x Cable Ties RJ45/DB9 Serial Cable User's Manual Registration & Download Cards PDU81001
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA 5-15P
  • Product Model
    PDU81001
  • Product Name
    PDU81001
  • Product Series
    Switched Metered-by-Outlet PDU
  • Product Type
    PDU
  • Rack Height
    1U
  • Receptacle Detail
    8 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Width
    17.1"
