CyberPower PDU81102 100 - 120 VAC 30A Switched Metered-by-Outlet PDU

Product #: SYNX5260235
$1,492.67
Ships Free - This items ships free with your order
Delivered by Mar 9 Delivered by Mar 10 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

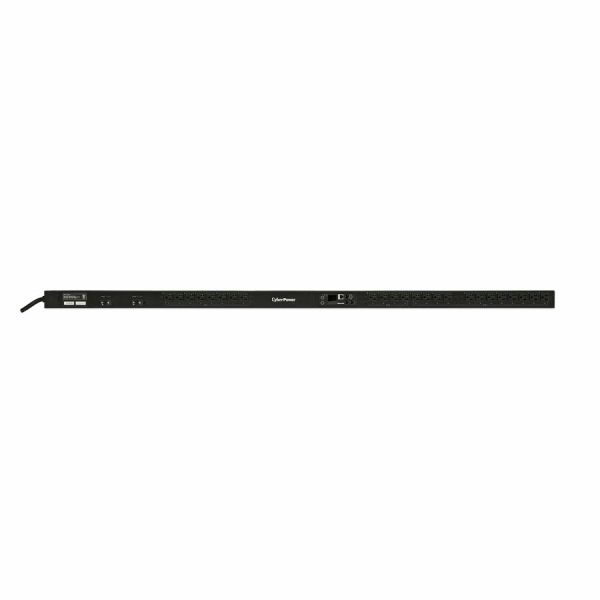

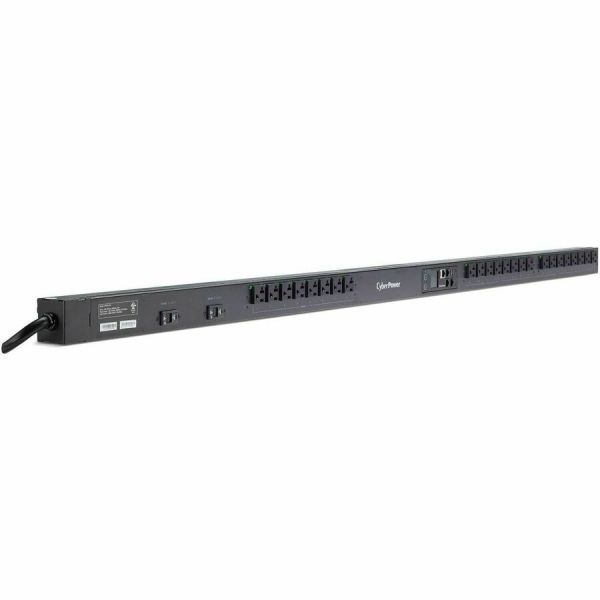

CyberPower PDU81102 100 - 120 VAC 30A Switched Metered-by-Outlet PDU
24 Outlets, 10 ft, NEMA L5-30P, Vertical, 0U, LCD, 3YR Warranty
Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.
  • Monitoring Level: Metered-by-Outlet
  • Notifications: Email, SMS Text
  • Phase: Single
  • Amps: 30A (Derated to 24A)
  • Volts: 100-120 V
  • Frequency: 50Hz/60Hz
  • Input plug type: NEMA L5-30P
  • Outlets: 24 NEMA 5-20R
  • Size: 0U Rackmount
  • Cord length (ft.): 10
  • Dimensions (in): 2.2W x 65.6H x 1.89D
  • Warranty: 3 year
  • PDU is reliable for power protection and management solutions
  • Remotely monitor your equipment without any worries with Switched with Metered-by-Outlet
  • NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
  • Single Phase phase PDU provides optimal power output with added usability
  • NEMA L5-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 120 V AC input voltage for better reliance and maximum dependability
  • 100 V AC output voltage for better reliance and maximum usability
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.62 x 4.8 (cm) Physical Dimensions - (WxHxD) (in) : 2.2 x 65.6 x 1.89 (in) Physical Dimensions - (WxHxD) (mm) : 56 x 1666 x 48 (mm) Weight (kg) : 7.8 Weight (lb) : 17.2 Shipping Dimensions - (WxHxD) (cm) : 18.49 x 189.51 x 11.51 (cm) Shipping - Dimensions (WxHxD, in) : 7.28 x 74.61 x 4.53 (in) Shipping - Dimensions (WxHxD, mm) : 184.91 x 1895.09 x 115.06 (mm) Shipping - Weight (kg) : 9.7 Shipping - Weight (lb) : 21.38 Cord Length : 10 ft (3.0 m) Derated Input Current : 24 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : NEMA L5-30P Maximum Input Current : 30A Power Cord Length : 10 ft (3 m) Circuit Quantity : 2 Nominal Output Voltage : 100 - 120 VAC Number of Outlets : 24 Outlets - Total : 24 Outlet Type COMPUTED : 24 - NEMA 5-20R Overload Protection : 20A x 2 USB Charge Port : No Environmental Sensor : Optional, via RJ45 Hardware Connection Port : RJ45 LCD : Multifunction LCD Outlet switching : Yes Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD Upgradeable firmware : Yes Color : Black Form Factors Supported : 0U Vertical Rackmount Material of Construction : Metal Rack Height : 0U Operating Elevation : 0 - 11483 ft (0 - 3500 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 140 °F (0 - 60 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 149 °F (-15 - 65 °C) Safety : UL62368 Extended Warranty Option : WEXT5YR-PDU1B Product Warranty : 3 Year Limited Warranty
  • Application/Usage
    Data Center Server Network Device
  • Brand Name
    CyberPower
  • Certifications & Standards
    UL62368 FCC Class A ICES-003: Issue 7
  • Circuit Breaker
    Yes
  • Cord Length
    10 ft
  • Country of Origin
    China
  • Depth
    1.9"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Features
    LCD Display
  • Form Factor
    Rack
  • Height
    65.6"
  • Input Current
    30 A
  • Input Frequency
    60 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    100 V AC - 120 V AC
  • Limited Warranty
    3 Year
  • Management
    IPv4 UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD Protocols: TCP IP SNMP
  • Manufacturer Part Number
    PDU81102
  • Maximum Operating Temperature
    140°F (60°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Mount Type
    Rack-mountable
  • Network (RJ-45)
    Yes
  • Output Voltage
    100 V AC 120 V AC
  • Output Voltage Range
    100 V AC - 120 V AC
  • Package Contents
    PDU81102 24-Outlet PDU 2 x Mounting Brackets 6 x M4x5 Screws 6 x M5x12 Screws/Washers 6 x M3x6 Screws Cord Retention Tray Cable Ties RJ45/DB9 Cable User's Manual Registration Download Cards
  • Phase
    Single Phase
  • Plug/Connector Type
    NEMA L5-30P
  • Product Model
    PDU81102
  • Product Name
    PDU81102
  • Product Series
    Switched Metered-by-Outlet PDU
  • Product Type
    PDU
  • Protection Type
    Accidental Power Shutdown Overload Protection
  • Rack Height
    0U
  • Receptacle Detail
    24 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-20R
  • Remote Outlet Switching
    Yes
  • Width
    2.2"
