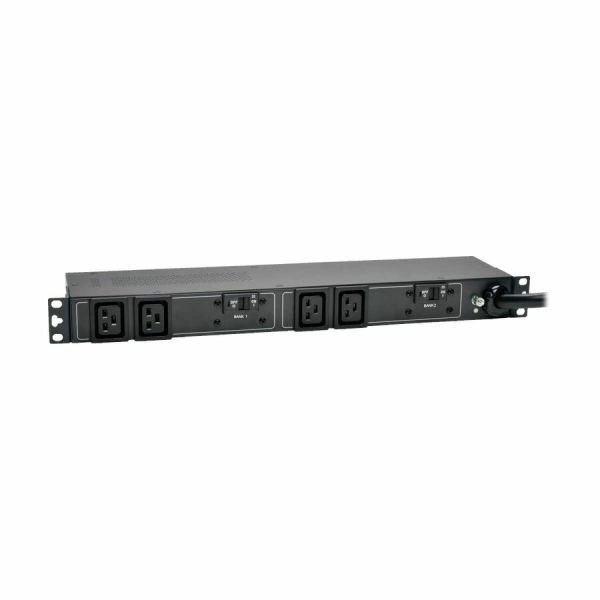

Eaton Tripp Lite Series 5.8kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount

Product #: SYNX4222543
$361.09
Ships Free - This items ships free with your order
Delivered by Mon 12/29 Tue 12/30 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

Eaton Tripp Lite Series 5.8kW Single-Phase 200-240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount
NEMA L6-30P - 4 x IEC 60320 C19 - 230 V AC - 5.80 kVA - 1U Horizontal Rackmount, Wall Mountable, Under-counter
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
More from the Manufacturer
  • Basic single phase 30A 208/240V PDU
  • 1U horizontal rackmount installation
  • NEMA L6-30P input; 12 ft. / 3.6m line cord
  • 4 C19 outlets
  • PDU provides power control as remote controlled relay & load monitoring
  • With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
  • IEC 60320 C19 receptacle type to ensure maximum usability and reliable power output
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for optimal performance with maximum usability
  • 230 V AC output voltage for maximum dependability and added productivity
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    Tripp Lite series
  • Certifications & Standards
    Tested to UL60950-1 (USA) CSA-C22.2 (Canada)
  • Cord Length
    12 ft
  • Country of Origin
    China
  • Depth
    5.2"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Height
    1.8"
  • Input Current
    30 A
  • Input Voltage
    230 V AC
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    PDUH30HV19
  • Mount Type
    Rack-mountable Wall-mountable
  • Mounting Orientation
    Horizontal
  • Output Voltage
    230 V AC
  • Package Contents
    Basic PDUH30HV19 4-Outlets PDU Mounting Accessories Instruction Manual
  • Placement
    Under-counter
  • Plug/Connector Type
    NEMA L6-30P
  • Power Rating
    5.80 kVA
  • Power Rating (Watt)
    5800 W
  • Product Line
    Basic
  • Product Model
    PDUH30HV19
  • Product Name
    Basic PDUH30HV19 4-Outlets PDU
  • Product Type
    PDU
  • Protection Type
    Overload Protection
  • Rack Height
    1U
  • Receptacle Detail
    4 x IEC 60320 C19
  • Receptacle Type
    IEC 60320 C19
  • Width
    17.5"
