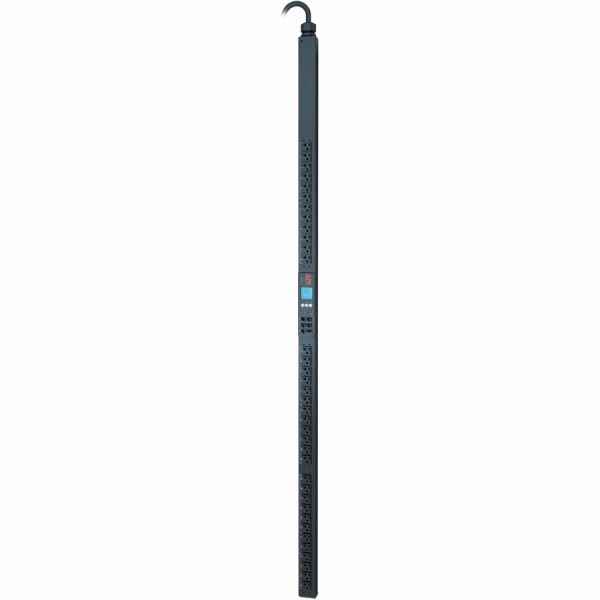

APC NetShelter Metered Rack PDU, 2G, 0U, 20A,120/208V, 3 phase, 36 NEMA 5-20R outlets
$1,055.77
Loading...
Product Description
APC NetShelter Metered Rack PDU, 2G, 0U, 20A,120/208V, 3 phase, 36 NEMA 5-20R outlets
Metered - NEMA L21-20P - 36 x NEMA 5-20R - 208 V - 5760 W - Circuit Protection - 5.97 ft Cord Length - 0U - Vertical - Rack-mountable
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
- Ideal for network and server closets or distributed IT sites
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Stay on top by defining alarm thresholds in order to avoid overloaded circuits
- 0U design maximizes usable rack space for IT equipment
- Meters power to enable optimal energy and protect circuits
- Fitted with multiple outlets for distribution of electrical power
- LCD to monitor current, power and voltage measurements
- Uses 6' long power cord to easily power
- Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions
Loading...
Product Specifications
-
Brand NameAPC by Schneider Electric
-
Certifications & StandardscUL Listed|UL Listed
-
Circuit BreakerYes
-
Cord Length5.97 ft
-
Country of OriginIndia
-
Depth1.7"
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134893&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
-
Environmentally FriendlyYes
-
For Country/RegionUnited States
-
Height70.5"
-
Input Current20 A
-
Input Voltage208 V
-
Lead FreeYes
-
Limited Warranty2 Year
-
ManagementWeb SNMP Telnet
-
Manufacturer Part NumberAP8862
-
Mercury FreeYes
-
Mount TypeRack-mountable
-
Mounting PreferenceNo Preference
-
Optimized Energy EfficiencyYes
-
Output Voltage120 V AC
-
Package ContentsMetered Rack PDU Installation Guide Rack Mounting Brackets Safety Guide Serial Configuration Cable
-
PlacementSide
-
Plug/Connector TypeNEMA L21-20P
-
Power Rating5.76 kVA
-
Power Rating (VA)5760 VA
-
Product ColorBlack
-
Product NameMetered Rack PDU
-
Product Take Back ProgramNo
-
Product TypePDU
-
Protection TypeCircuit Protection
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134893&lang=en-us
-
REACH free of SVHCYes
-
Rack Height0U
-
Receptacle Detail36 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8862_ROHS_DECLARATION&p_FileName=AP8862KIT_ROHS_DECLARATION_US.pdf
-
Width2.2"
