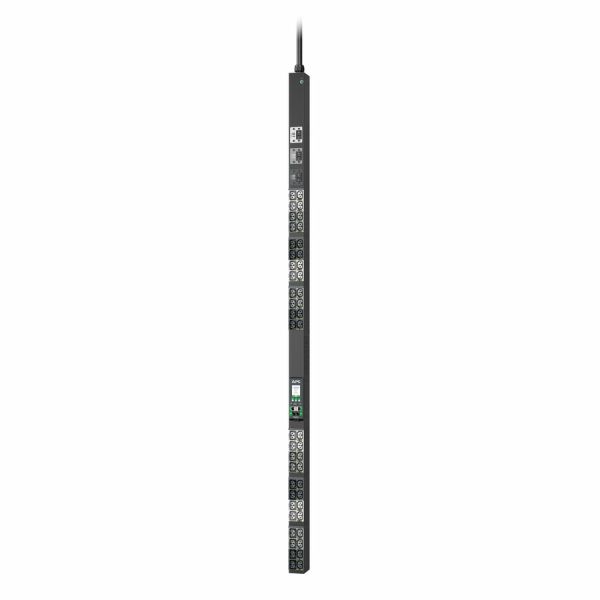

APC NetShelter Rack PDU Advanced, Switched Metered Outlet, 3Phase, 8.6kW, 208V 30A, 48 Outlets, L21-30P

Product #: ETLZ1072294025
$4,124.72
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC NetShelter Rack PDU Advanced, Switched Metered Outlet, 3Phase, 8.6kW, 208V 30A, 48 Outlets, L21-30P
Switched - NEMA L21-30P - 24 x IEC 60320 C13/C15, 24 x IEC 60320 C13/C15/C19/C21 - 208 V - 5.91 ft Cord Length - 0U - Vertical - Rack - TAA Compliant
APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. Outlet and PDU level power metering for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
  • Input: 3PH, NEMA L21-30P
  • Outlets: (24) C13/C15/C19/C21, (24) C13/C15
  • Full-featured network management capability
  • Interactive LCD display
  • Active power measurements (volts, amps, kW, kWh)
  • 3-year APC warranty
  • PDU provides active metering enabling energy optimization and circuit protection
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • IEC 60320 C13/C15/C19/C21 receptacle type to ensure maximum dependability and optimal performance
  • With proper ventilation, your Side PDU will work efficiently
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • NEMA L21-30P plug/connector type for efficient connectivity and feasible power output
  • 208 V input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for maximum dependability and added productivity
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    TAA Compliance BAA Compliance
  • Cord Length
    5.91 ft
  • Country of Origin
    United States
  • Depth
    3"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552063008&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Rack
  • Height
    70.1"
  • Input Current
    30 A
  • Input Voltage
    208 V
  • Input Voltage Range
    200 V AC - 240 V AC
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    APDU10351SM
  • Mounting Preference
    No Preference
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    208 V AC
  • Phase
    Three Phase
  • Placement
    Side
  • Plug/Connector Type
    NEMA L21-30P
  • Power Rating (VA)
    8600 VA
  • Power Rating (Watt)
    8600 W
  • Product Color
    Black
  • Product Line
    NetShelter
  • Product Name
    NetShelter 48-Outlets PDU
  • Product Take Back Program
    No
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552063008&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    0U
  • Receptacle Detail
    24 x IEC 60320 C13/C15 24 x IEC 60320 C13/C15/C19/C21
  • Receptacle Type
    IEC 60320 C13/C15 IEC 60320 C13/C15/C19/C21
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU10351SM_ROHS_DECLARATION&p_FileName=APDU10351SMKIT_ROHS_DECLARATION_US.pdf
  • Width
    2.2"
