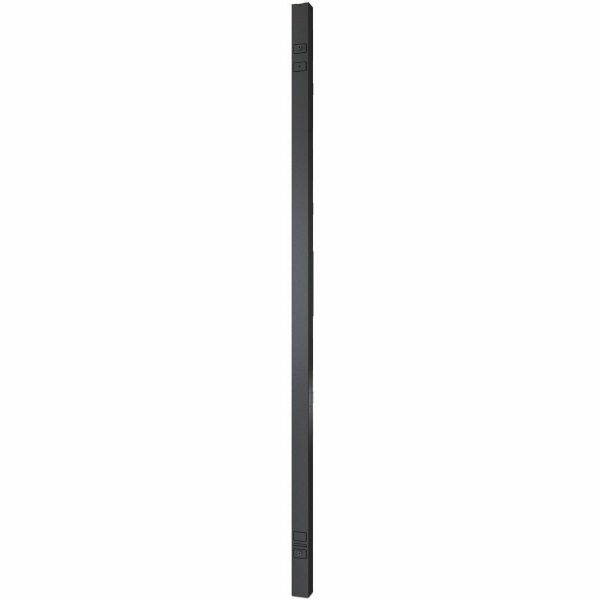

APC NetShelter Switched Rack PDU, 0U, 20A, 100-120V, 24 NEMA 5-20R outlets

(3 reviews)
|
Product #: SYNX4011397
$1,565.51
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC NetShelter Switched Rack PDU, 0U, 20A, 100-120V, 24 NEMA 5-20R outlets
Switched - NEMA L5-20P - 24 x NEMA 5-20R - 120 V - 1920 W - 9.51 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
More from the Manufacturer
  • Ideal for remote monitoring, reboots, powerup sequencing, scheduling power loads
  • Remote monitoring and control for up to 4 PDUs from one IP address
  • Enhance cybersecurity: 1 year subscription to Secure NMC System included
  • 2 year warranty & Green PremiumTM label (see specifications)
  • Operates in high temperatures (60°C / 140°F) and actively measures amps, kW, kWh
  • User-defined alarms warn of potential circuit overloads before critical IT failures occur
  • A device fitted with multiple outputs for the distribution of electric power
  • With a built-in digital current meter avoid potential overloads via switched PDUs
  • NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
  • With proper ventilation, your Side PDU will work efficiently
  • NEMA L5-20P plug/connector type for efficient connectivity and feasible power output
  • 120 V input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|UL Listed
  • Cord Length
    9.51 ft
  • Country of Origin
    India
  • Depth
    1.8"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134904&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Tower
  • Height
    70.5"
  • Input Current
    20 A
  • Input Voltage
    120 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AP8930
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    120 V AC
  • Package Contents
    Switched Rack PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Placement
    Side
  • Plug/Connector Detail
    1 x NEMA L5-20P
  • Plug/Connector Type
    NEMA L5-20P
  • Power Rating
    1.92 kVA
  • Power Rating (VA)
    1920 VA
  • Product Line
    Switched Rack
  • Product Name
    Switched Rack PDU
  • Product Take Back Program
    No
  • Product Type
    PDU
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134904&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    0U
  • Receptacle Detail
    24 x NEMA 5-20R
  • Receptacle Type
    NEMA 5-20R
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8930_ROHS_DECLARATION&p_FileName=AP8930KIT_ROHS_DECLARATION_US.pdf
  • Width
    2.2"
