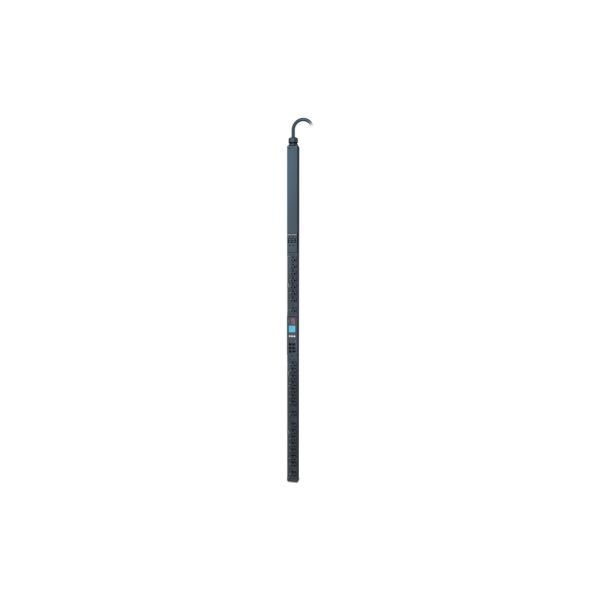

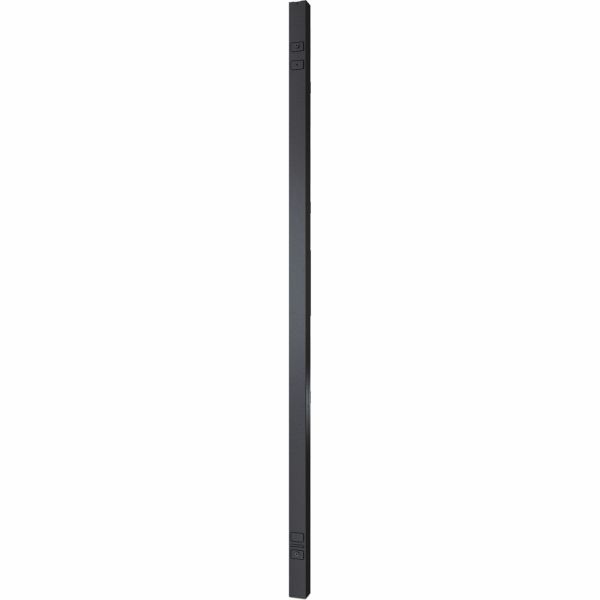

APC Rack PDU, 2G, switched, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets - Switched - NEMA L5-30P - 24x NEMA - AP8932

(1 review)
|
Product #: ODFN210315
$1,738.09
Ships Free - This items ships free with your order
Delivered by Mon 12/22 Tue 12/23 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

APC Rack PDU, 2G, switched, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets - Switched - NEMA L5-30P - 24x NEMA - AP8932
Switched - NEMA L5-30P - 24 x NEMA 5-20R - 100 V, 120 V - 2880 W - Overload Protection - 9.51 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
  • User-defined alarms warn of potential circuit overloads before critical IT failures occur
  • Zero U toolless installation
  • Remote management of rack PDUs for efficient time-saving
  • Power sequencing delays determine the order in which power is turned on or off
  • 2 year warranty & Green PremiumTM label (see specifications)
  • Ideal for remote monitoring, reboots, powerup sequencing, scheduling power loads
APC logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    2-Year Limited
  • Brand Name
    APC
  • Certifications & Standards
    cUL Listed|PSE|UL Listed
  • Circuit Breaker
    Yes
  • Color
    Black
  • Cord Length
    10 ft
  • Country of Origin
    IN
  • Depth
    1-13/16 in.
  • Dimensions
    70-33/64 in. X 2-11/64 in. X 1-13/16 in.
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134907&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
  • Environmentally Friendly
    Yes
  • Features
    Overload Protection
  • For Country/Region
    United States
  • Form Factor
    Tower
  • Height
    70-33/64 in.
  • Input Current
    30 A
  • Input Voltage
    100 V 120 V
  • Lead Free
    Yes
  • Limited Warranty
    2 Year
  • Management
    Web SNMP Telnet
  • Manufacturer
    AMERICAN POWER CONVERSION CORP
  • Manufacturer Part Number
    AP8932
  • Maximum Input Current
    30 V
  • Mercury Free
    Yes
  • Model
    2G
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Number of Cord/Cable
    1
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    100 V AC 120 V AC
  • Overload Protection
    Yes
  • Package Contents
    Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R Installation guide Rack mounting brackets Safety guide Serial configuration cable
  • Packaging
    1
  • Placement
    Side
  • Plug/Connector Type
    NEMA L5-30P
  • Power Rating (VA)
    2880
  • Product Name
    Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R
  • Product Take Back Program
    No
  • Product Type
    Power Distribution Units (PDUs)
  • Protection Type
    Overload Protection
  • Quantity
    1
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134907&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    0U
  • Receptacle Type
    NEMA 5-20R
  • Refurbished
    N
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8932_ROHS_DECLARATION&p_FileName=AP8932KIT_ROHS_DECLARATION_US.pdf
  • Width
    2-11/64 in.
