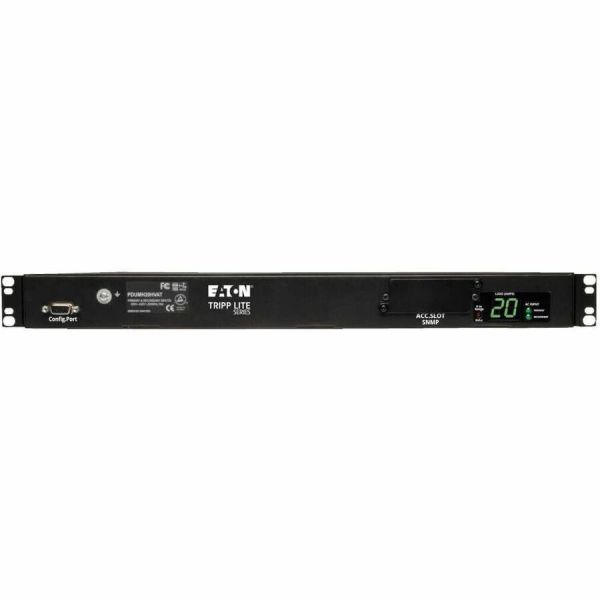

Tripp Lite by Eaton 3.8kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA
- Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
- Enables redundant-power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 C20 inputs; 8 C13 and 2 C19 outlets
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Tripp Lite by Eaton 3.8kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA - Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
- Enables redundant-power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 C20 inputs; 8 C13 and 2 C19 outlets
- Two digit visual current meter; Upgrade options available
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- IEC 60320 C19 receptacle type to ensure maximum productivity with added feasibility
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for maximum feasibility and added productivity
- 200 V AC output voltage for optimal performance with maximum feasibility
Product Specifications
-
Brand NameTripp Lite by Eaton
-
CompatibilityUPS Systems
-
Country of OriginTaiwan
-
Depth14"
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Height1.7"
-
Input Voltage230 V AC
-
Input Voltage Range200 V AC - 240 V AC
-
Limited Warranty2 Year
-
Manufacturer Part NumberPDUMH20HVAT
-
Mount TypeRack-mountable
-
Output Voltage200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
-

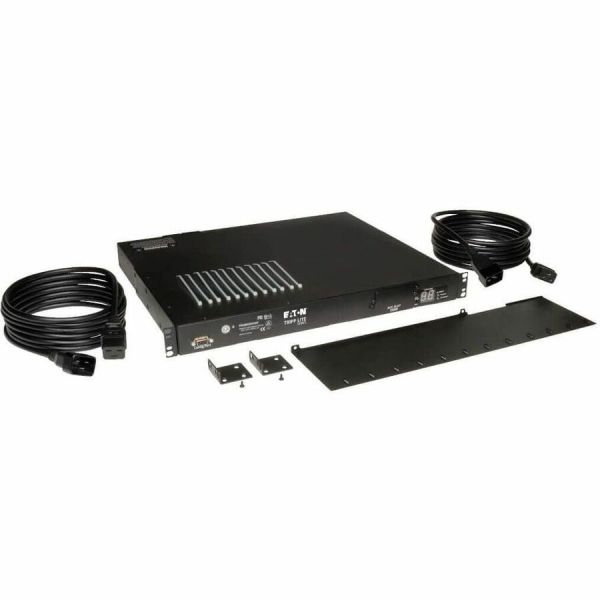

Package ContentsMetered PDUMH20HVAT 10-Outlets PDU User Manual with Warranty Information
-
Plug/Connector Detail2 x IEC 60320 C20
-
Plug/Connector TypeIEC 60320 C20
-
Product ColorBlack
-
Product ModelPDUMH20HVAT
-
Product NameMetered PDUMH20HVAT 10-Outlets PDU
-
Product SeriesMetered
-
Product TypePDU
-
Rack Height1U
-

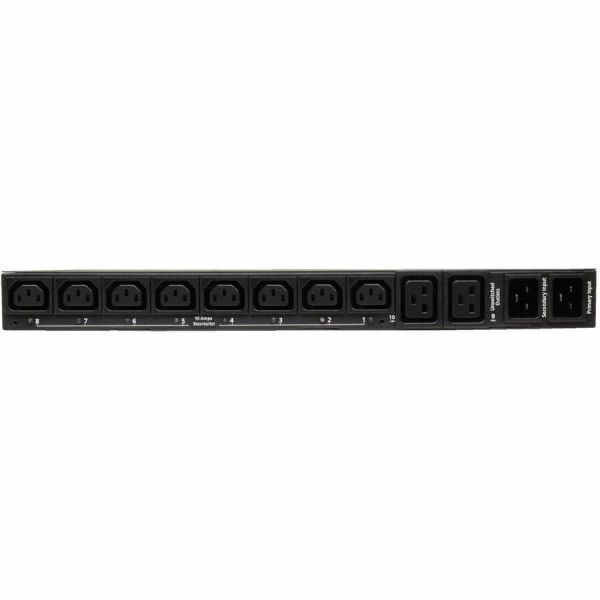

Receptacle Detail2 x IEC 60320 C19 8 x IEC 60320 C13
-
Receptacle TypeIEC 60320 C13 IEC 60320 C19
-
Width17.3"
